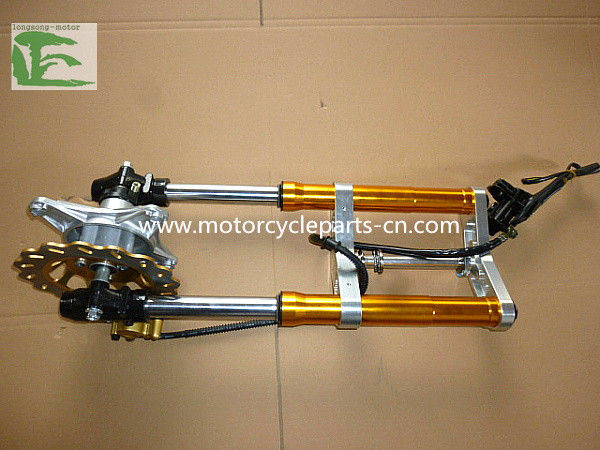

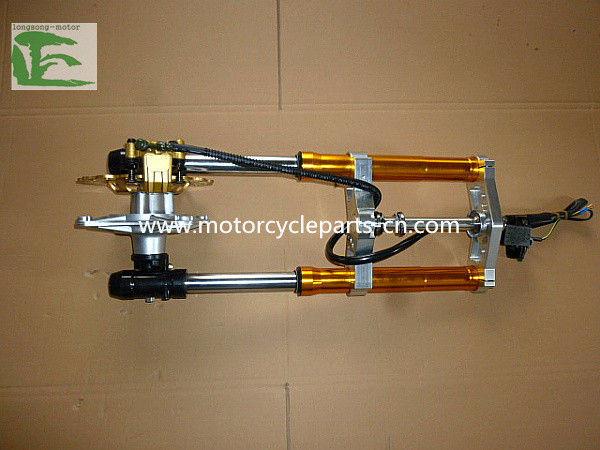

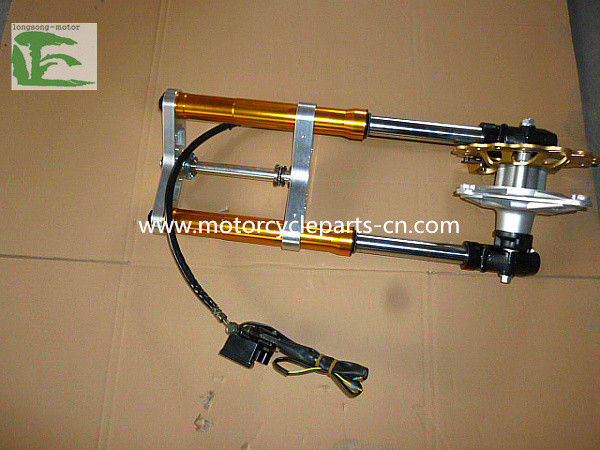

Yellow Z50 CNC motorcycle shock absorbers / DAX CT70 Fork DAMPER

Description:

Applicable models: ST70 DAX70 CT70 motorcycle

Telescopic hydraulic fork tube shock absorbers

Telescopic front fork with front wheel and the frame are linked, both play a supporting role in a part of the skeleton, underway

The role of shock absorber. With telescopic handle each tube and casing between the fork oil through the settings within the next

Holes flow. When compressing the tube handle, the tube with the movement of the handle after the oil pressure chamber B flows through the orifice on the tube handle

C room. A free-flowing through the valve while room. Oil flow when subjected to a compressive force decay resistance. When approaching the limit of the compression stroke, the end of the tapered shank tube sheet will plug seal, thus closing the B indoor oil passage. In this case, B plays stimulated increased hydraulic pressure chamber, it is in closed state, thus limiting the stroke of the handle tube effectively prevent instantaneous mechanical impact of the movable part between the front fork. In the handle tube elongation (ie rebound), A is located in the interior of the oil through the upper part of the front fork piston (near the piston rings) orifice flow C room. At this point, the oil flows attenuated done by the resistance force. When done stroke approaching the limit, elongation rebound springs absorb vibration energy, and in this process, the oil through the lower part of the front fork piston holes added to B room for the next job ready

Spare parts for Honda DAX(CT70), Monkey, Gorilla , such as lights, plastic body covers, Fuel Tank, Seat, shocks ,wheels, tires, cables, speedometer, seat, frame,Muffler, horn, locks.

Applications:

All the spare parts are used for repairing.

motorcycle shock absorbers

Motorcycle front fork
